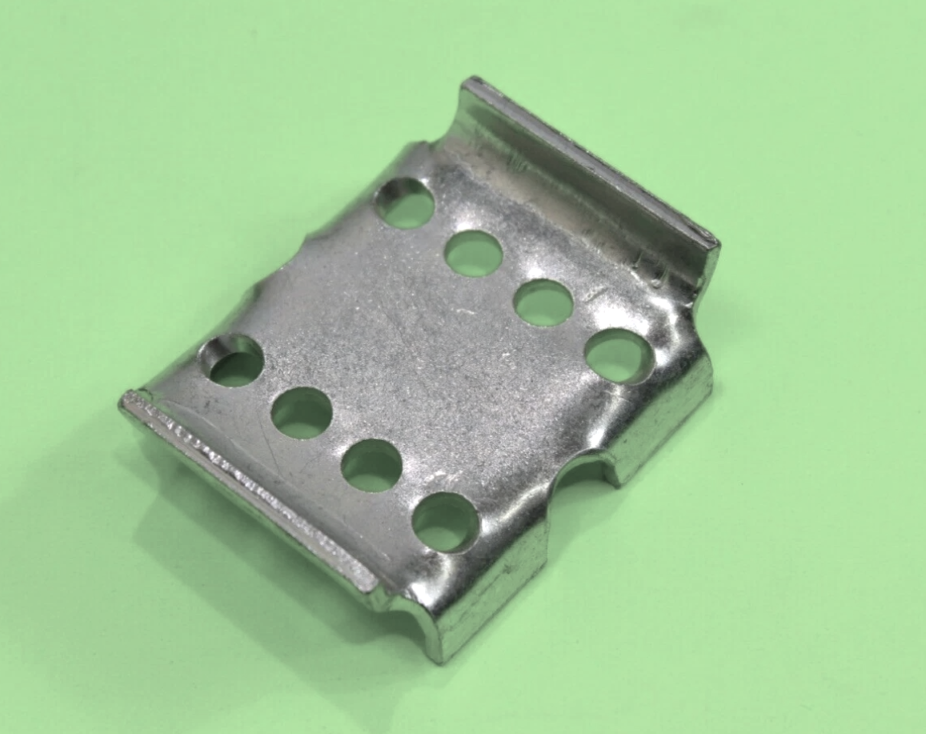

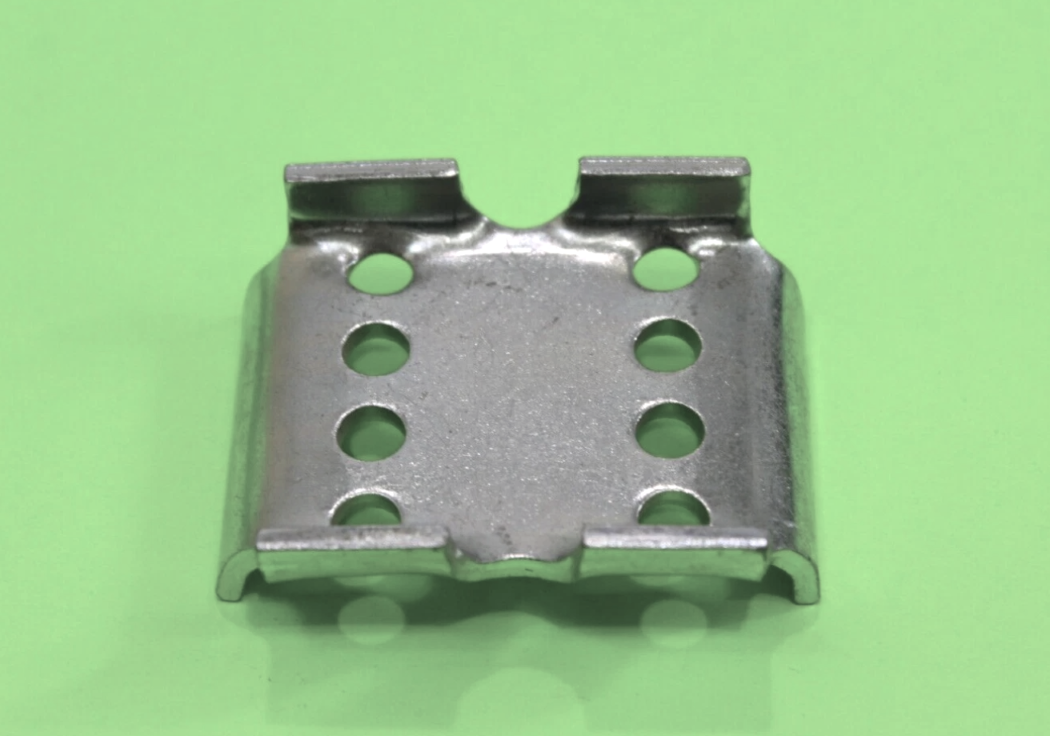

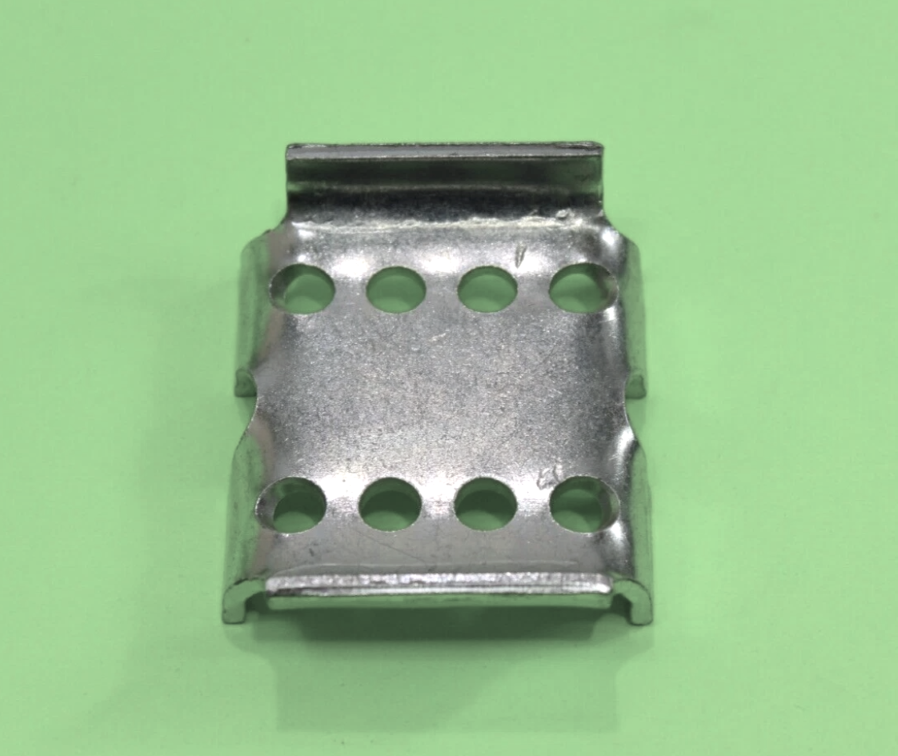

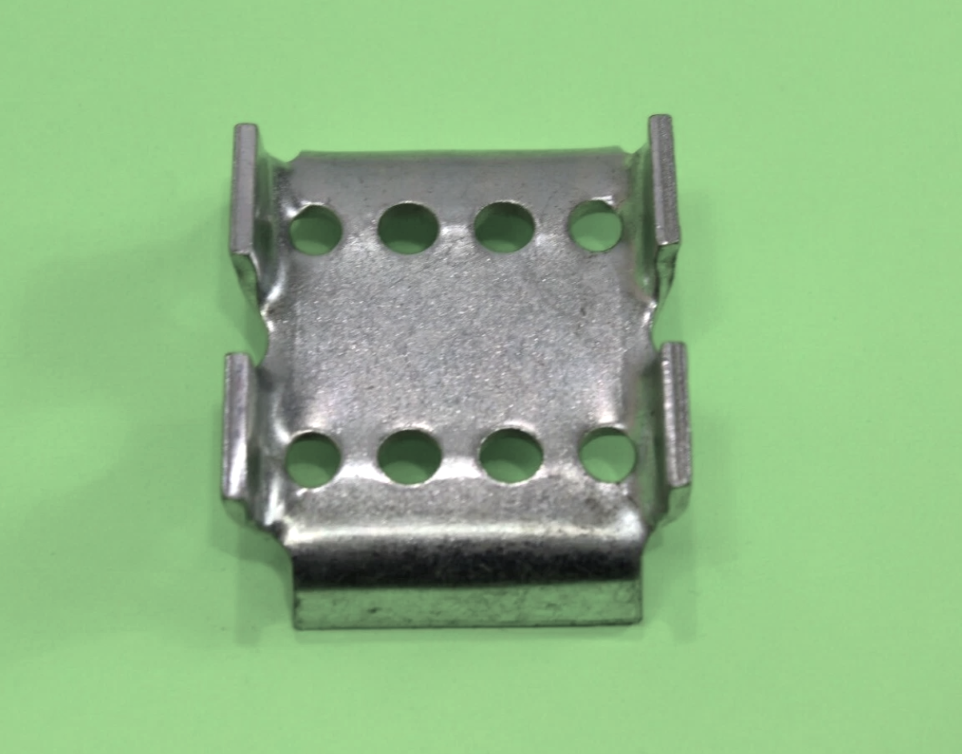

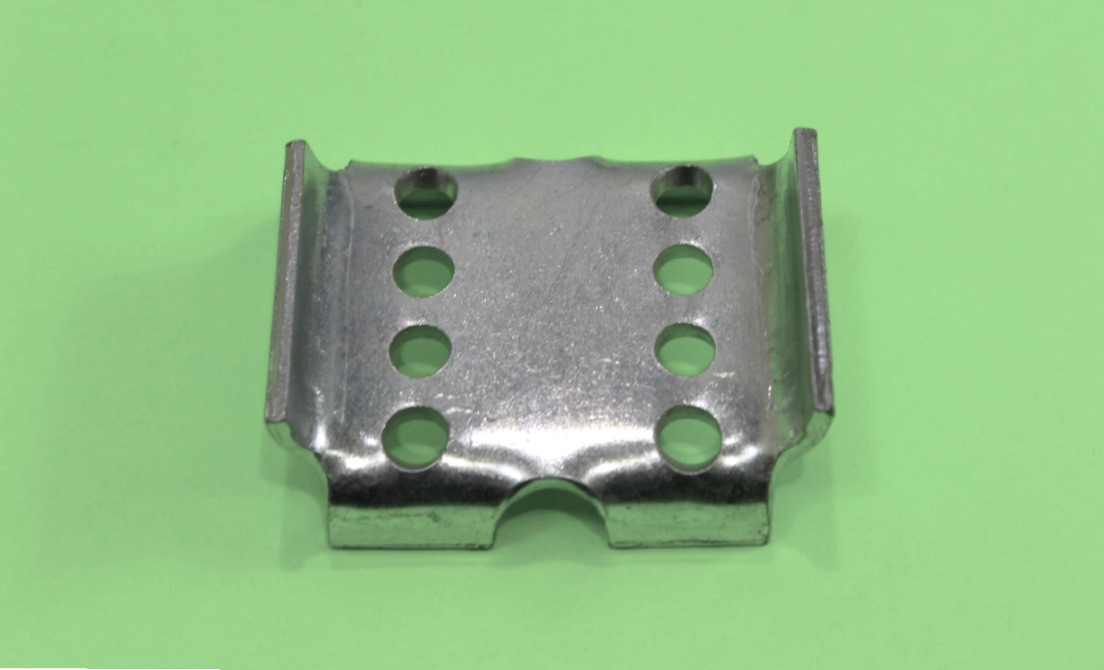

EZ Loader Upright Channel Locking Bracket – 2x3 Frame (250-022511-02)

Positive-Lock Support. No Slip. Built for Long-Term Stability.

The EZ Loader Locking Bracket for Upright Channel Bunk Brackets is designed to create a secure, non-slip connection between the trailer crossmember and the upright channel bracket. This bracket uses a dimple-to-dimple engagement system that locks the upright in place when tightened.

When properly installed, the pressed holes in this bracket align with the formed dimples on the upright channel, creating a mechanical bond that helps prevent vertical movement under load. This design improves long-term stability and helps maintain correct bunk positioning over time.

This component is not required for basic installation, but it is strongly recommended for applications where long-term durability, consistent alignment, and reduced maintenance are important.

Key Features

• OEM EZ Loader Part
• Dimple-to-dimple locking design
• Helps prevent bracket slippage under load
• Improves long-term bunk alignment
• Zinc-plated steel for corrosion resistance

How It Works

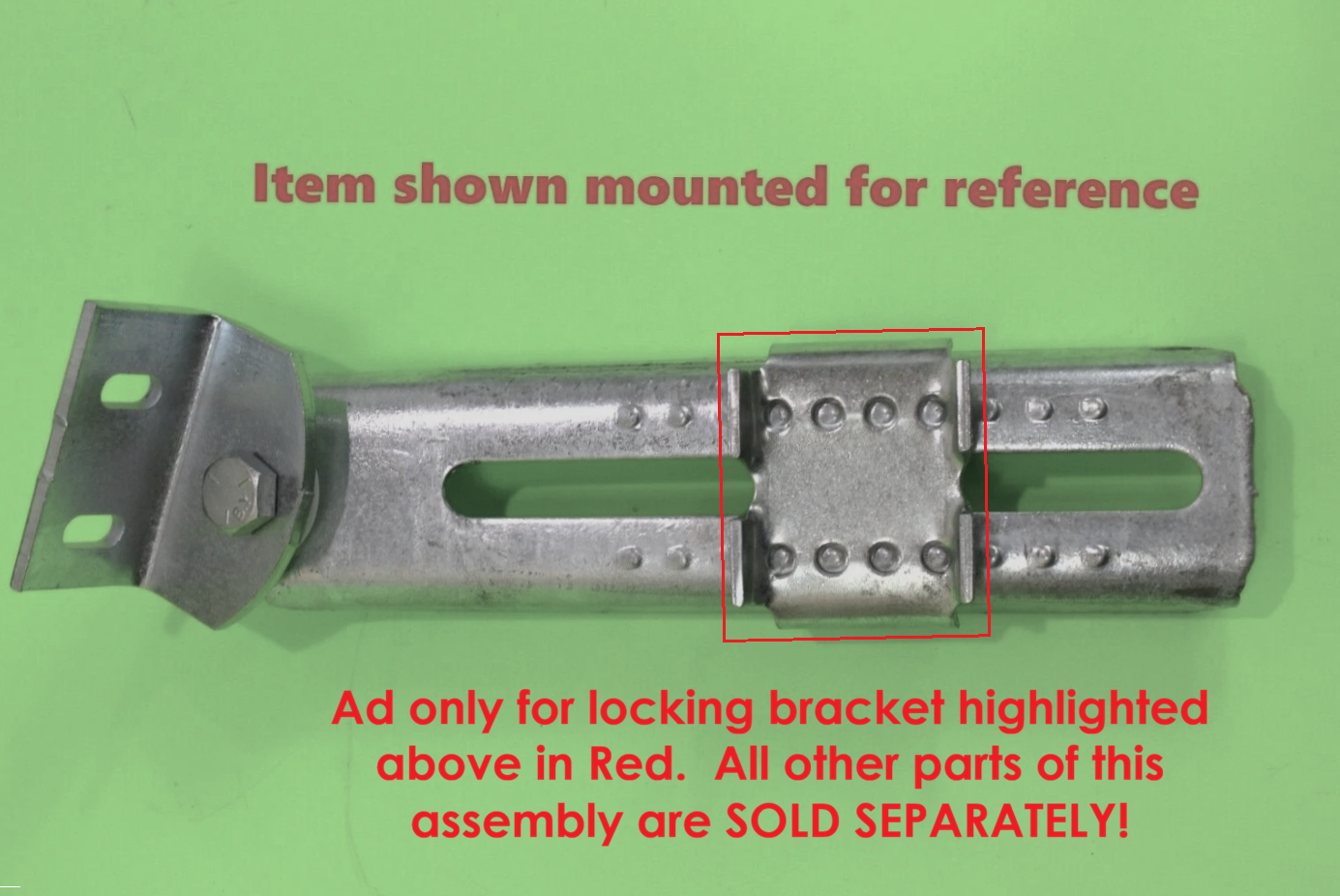

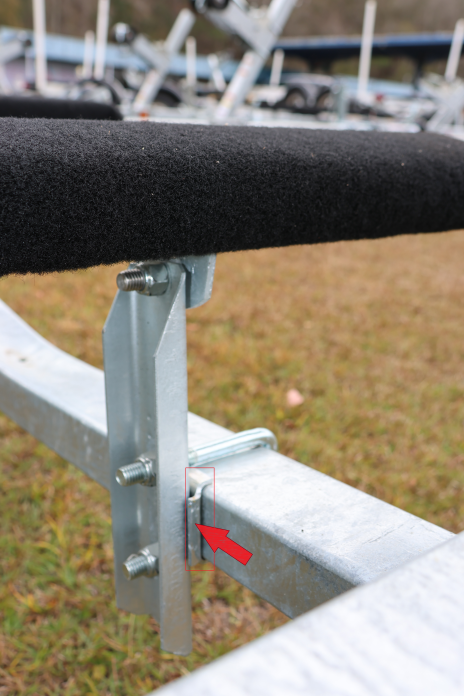

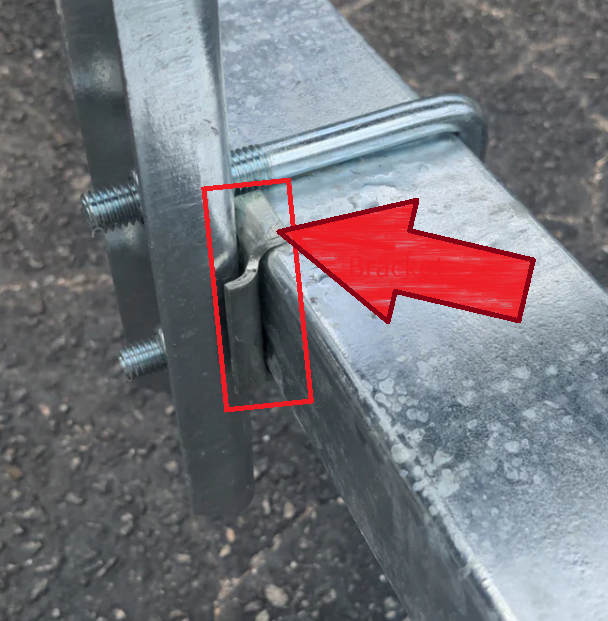

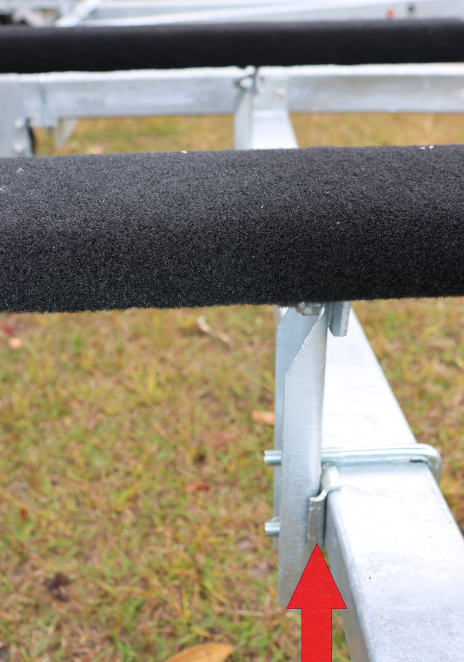

• Bracket mounts between crossmember and upright channel bracket

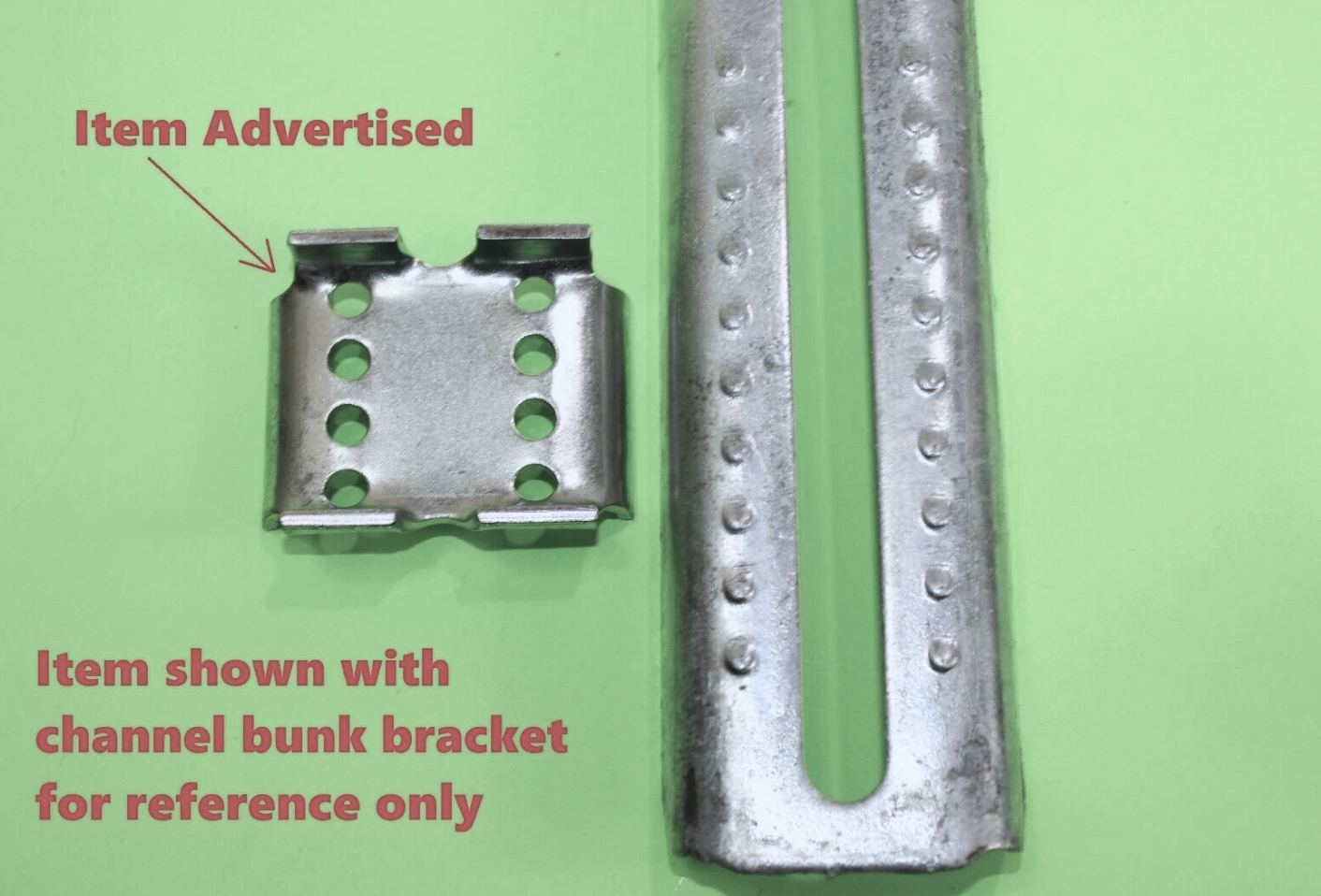

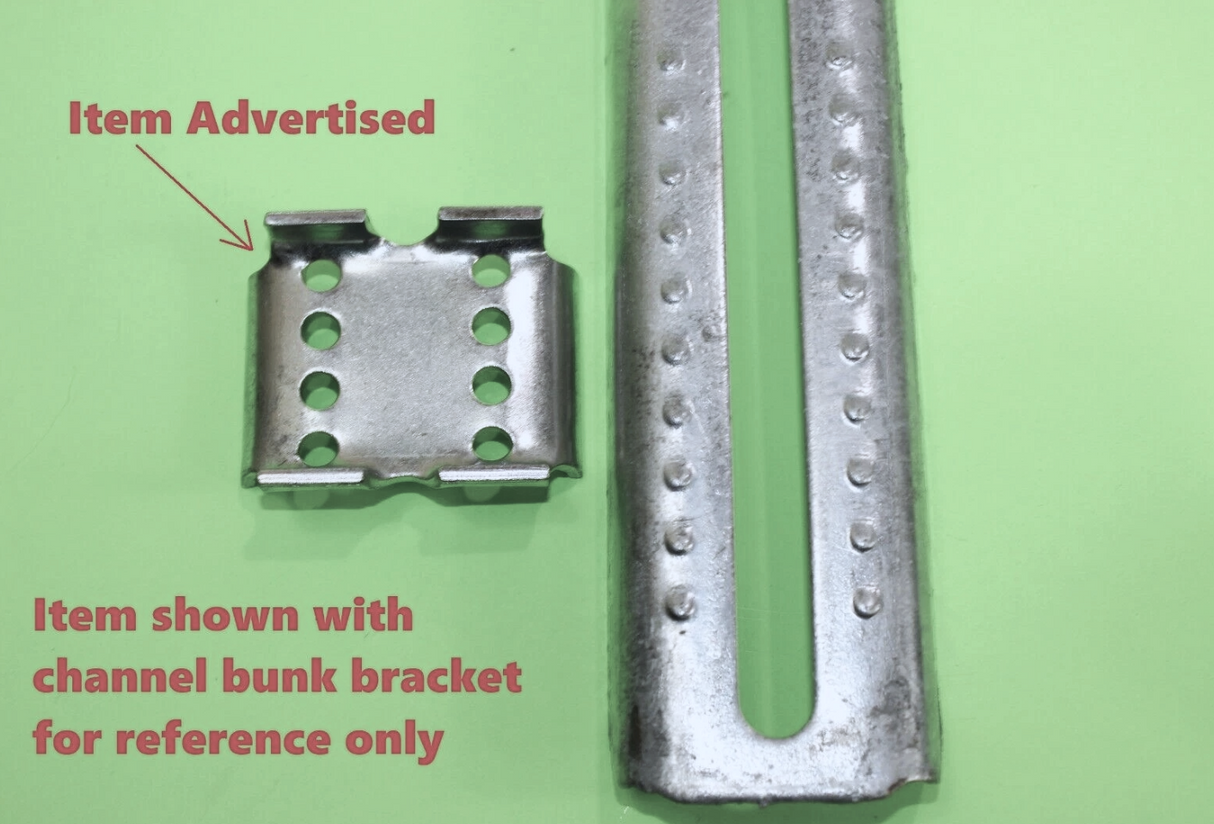

• Pressed holes align with dimples on upright bracket
• When tightened, creates a mechanical locking bond
• Helps prevent movement up or down over time

Why This Part Matters

This bracket is not required for basic bunk installation, but it is one of the details that separates a standard setup from a long-lasting one.

EZ Loader engineered this design to reduce movement and maintain proper bunk alignment over time. By using this locking system, the trailer structure remains more consistent under load, which helps reduce adjustments and wear.

This is one of the reasons EZ Loader trailers are known for long-term fit and durability—and why we continue to recommend these components to customers who want it done right the first time.

Installation Notes

• Mounts to 2" x 3" crossmembers
• Used in conjunction with upright channel bunk brackets
• U-bolts and additional hardware required (not included)
• Proper alignment is required for locking feature to engage

Works With

• EZ Loader Upright Channel Bunk Brackets
• U-bolt mounting systems for 2" x 3" frames

Need Help Getting It Right?

If you're unsure whether this locking bracket is needed for your setup, we can help you decide.

📞 Call during normal business hours (Monday–Thursday) — if we’re not already on another call, we’ll pick up and walk you through it.
📧 Email works too — send photos or measurements and we’ll help confirm the right setup.

These small details make a big difference—especially when you're setting up a trailer to last.
