EZ Loader 9" Bunk Support Bracket & Top Hat Assembly Kit (411-1001)
Complete Bunk Support Kit. No Guesswork. Ready to Install.
This EZ Loader 9" Bunk Support Bracket & Top Hat Assembly Kit provides a complete solution for mounting bunk boards to your trailer frame. Designed for convenience and proper fitment, this kit includes the upright support bracket, top hat bracket, and matching hardware required to build a stable bunk support system.
Ideal for replacing worn components or building a new bunk setup, this kit eliminates the need to source individual parts. The 9" upright design allows for proper bunk height and alignment, while the included hardware ensures a secure connection between components.
| Product Details | |
|---|---|
| Part Number: | 411-1001 |
| Fits: | Mounts to 3" x 3" trailer frame (crossmember) with bunk board mounting system |
| Part Type: | Bunk Support Assembly Kit |
| Material: | Galvanized Steel Components with Zinc-Plated Hardware |
| Dimensions: | 6-1/8" L x 3-1/2" W x 9" H |
| Function: | Provides complete adjustable bunk support system connecting frame, bracket, and bunk board |
| Why Buyers Like This Kit: | Complete package, no part matching required, OEM components, improved alignment, saves time |
| Important Fitment Note: | Bunk boards attach using lag screws (not included). Verify spacing and height requirements before installation |
Included Components

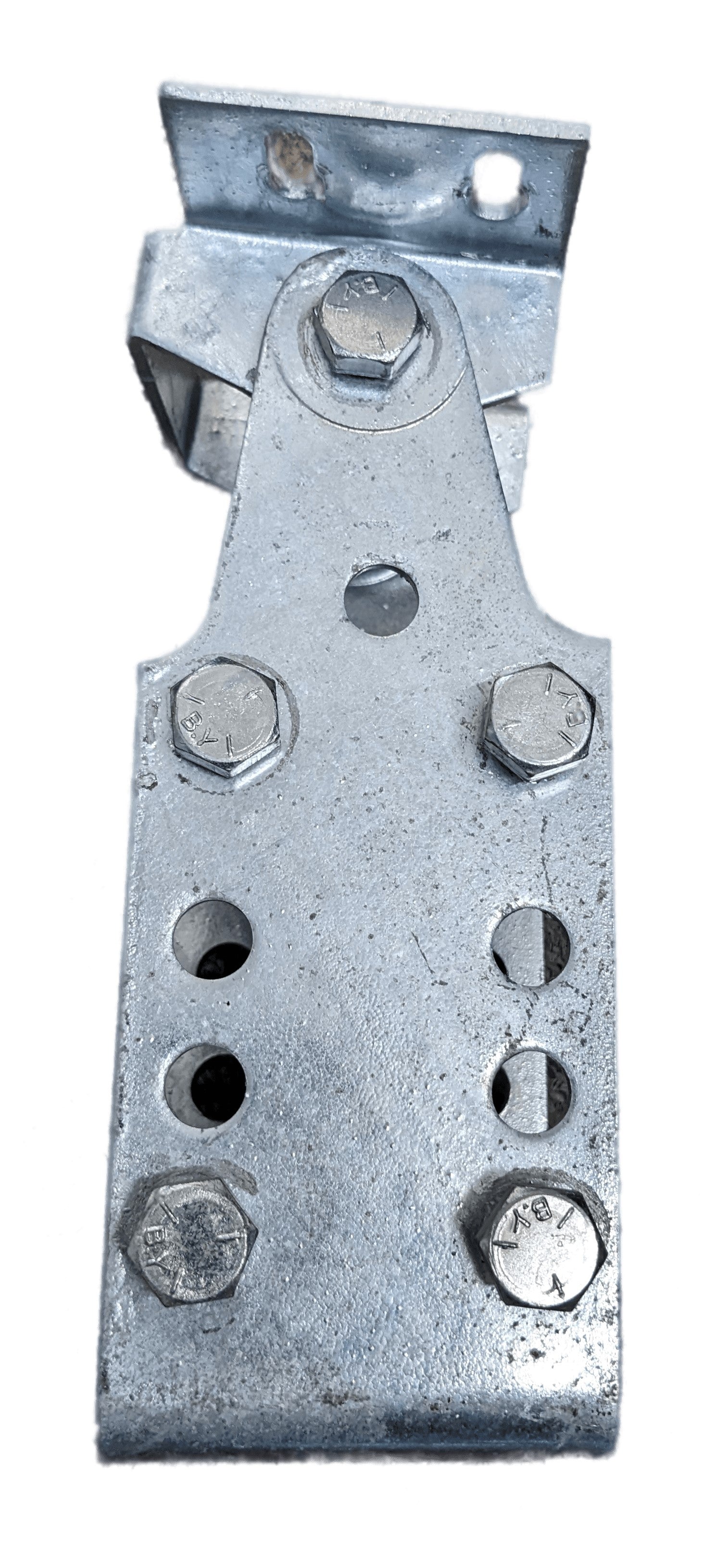

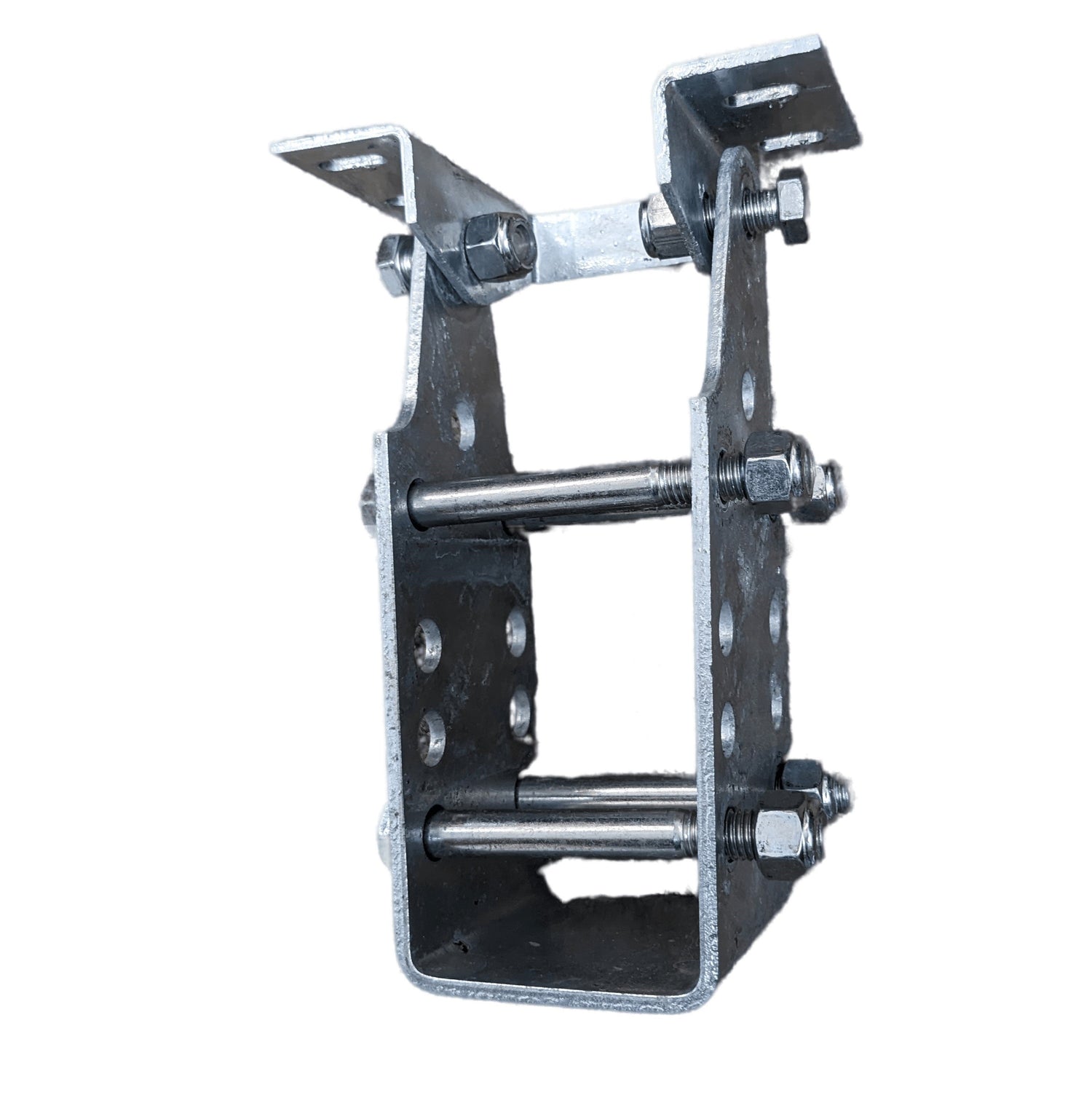

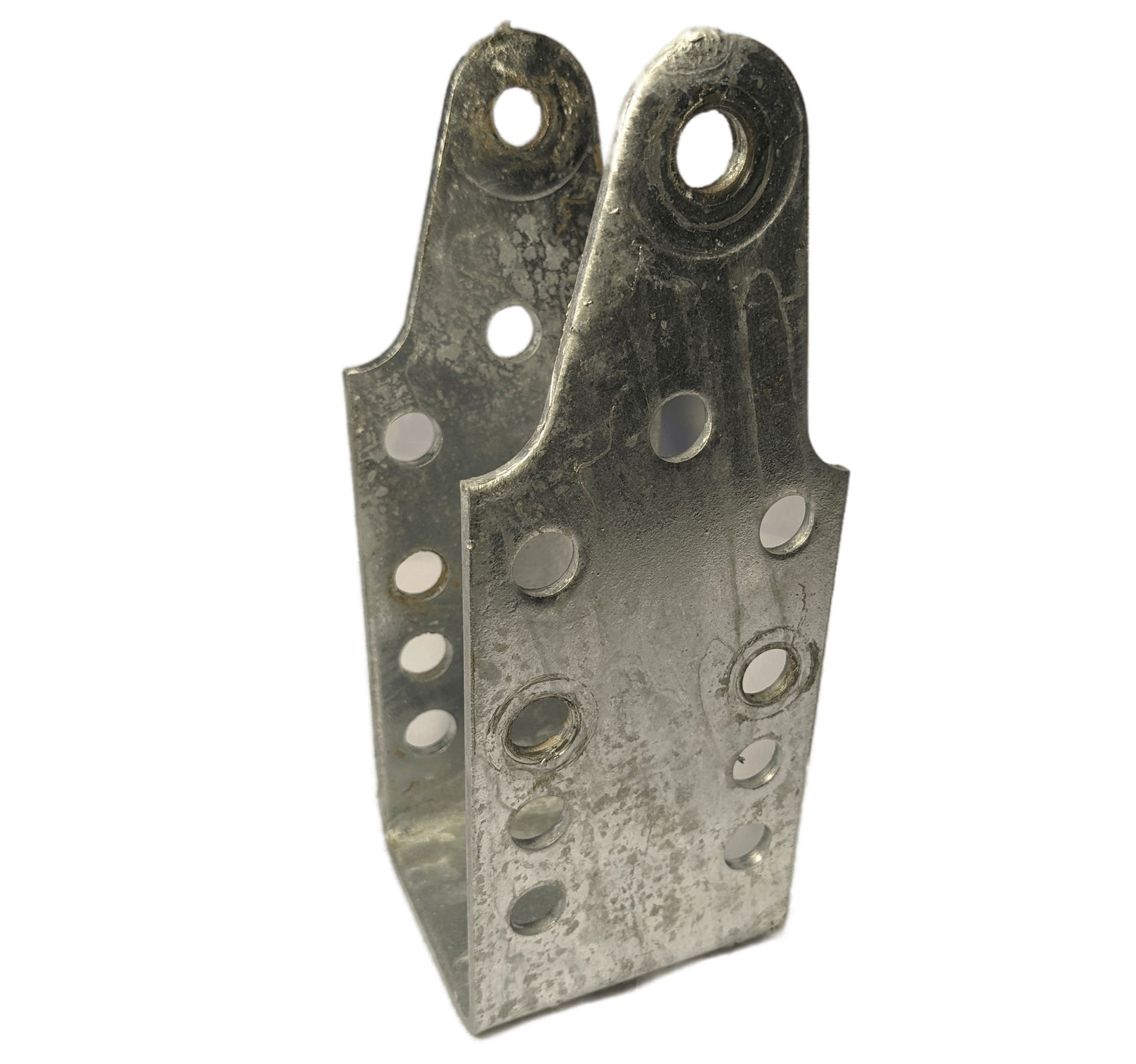

- (1) 9" Upright Support Bracket
- (1) Top Hat Bunk Bracket
- (4) Zinc Plated Bolts (1/2"-13 x 4-1/2")
- (2) Zinc Plated Bolts (1/2"-13 x 1-1/2")
- (6) Zinc Plated Locknuts (1/2"-13)
Key Features
- OEM EZ Loader components packaged together
- Complete assembly kit — no part matching required
- Multiple mounting holes for height adjustment
- Mounts to 3" x 3" trailer frame
- Supports bunk boards and roller systems
- Ideal for higher bunk configurations
Installation Notes
- Mounts directly to 3" x 3" trailer crossmember
- Bunk boards attach to top hat bracket using lag screws (not included)
- All bracket-to-bracket hardware included
- Proper alignment ensures correct hull support
Typical EZ Loader Trailer Applications
Commonly used on EZ Loader trailers where adjustable bunk height and full support systems are required.
Compare options:
- 12" Assembly Kit (411-1003) — for taller bunk setups and deeper hulls
- Individual components available for partial replacement
