Boat Trailer Spindle Cotter Key – 5/32" SS | 290-002656

Stainless Steel Boat Trailer Spindle Cotter Key – 5/32" | 290-002656

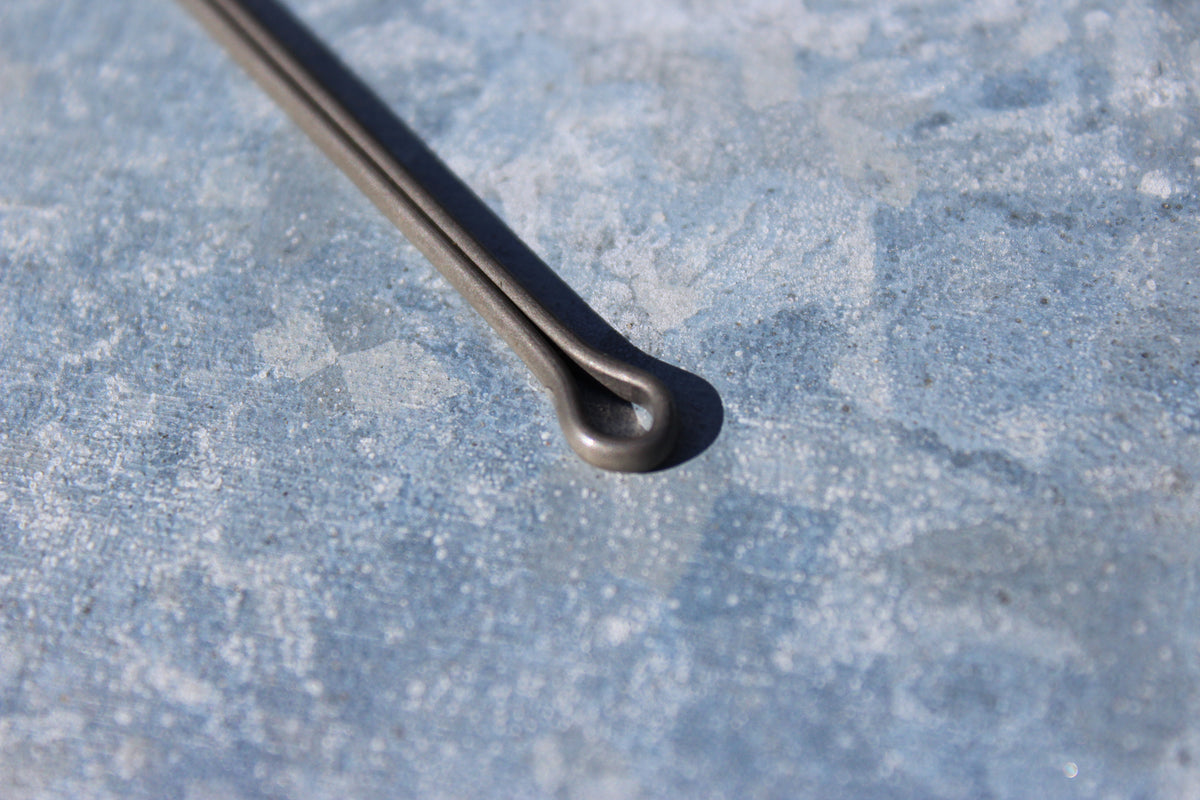

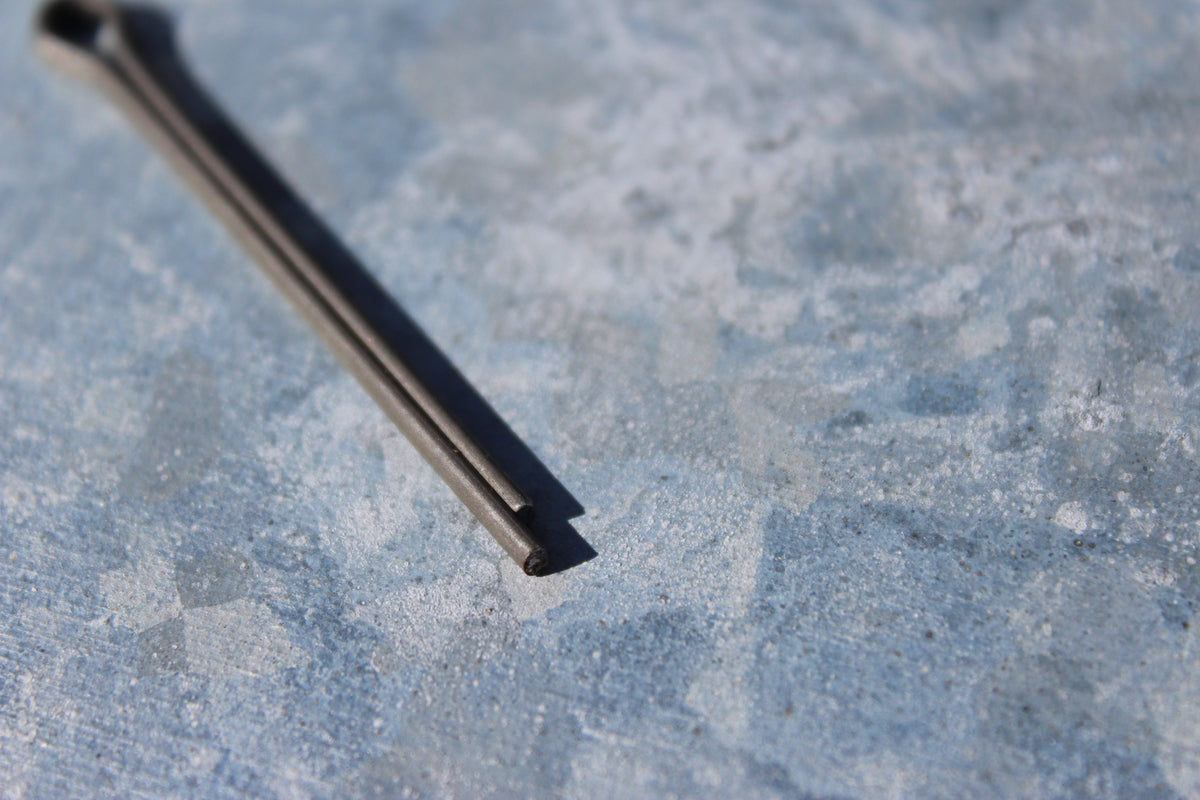

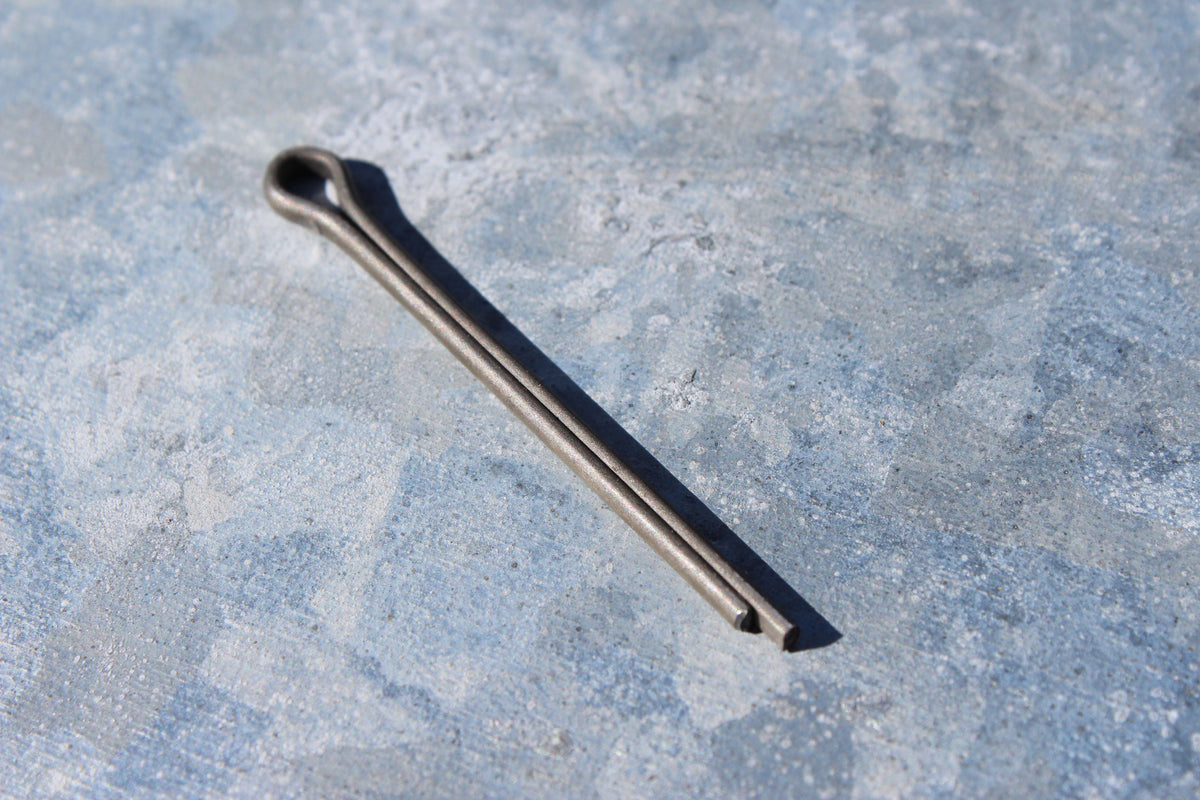

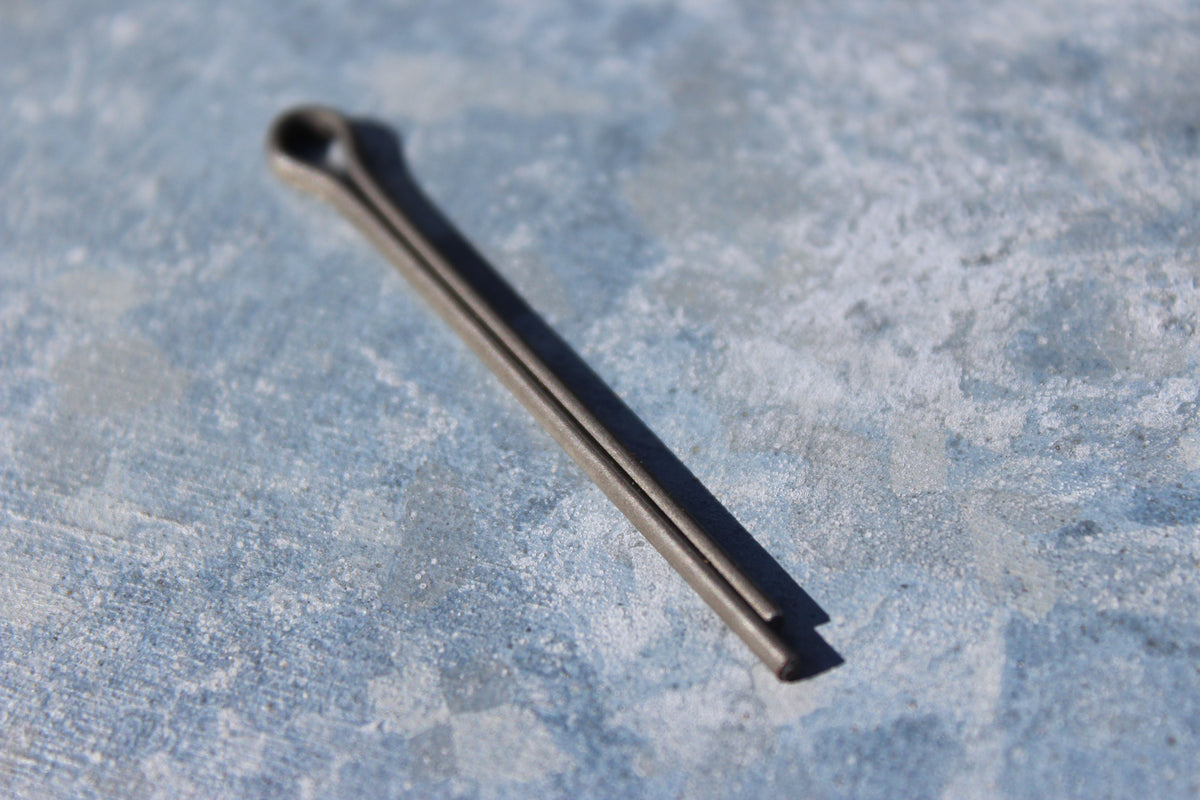

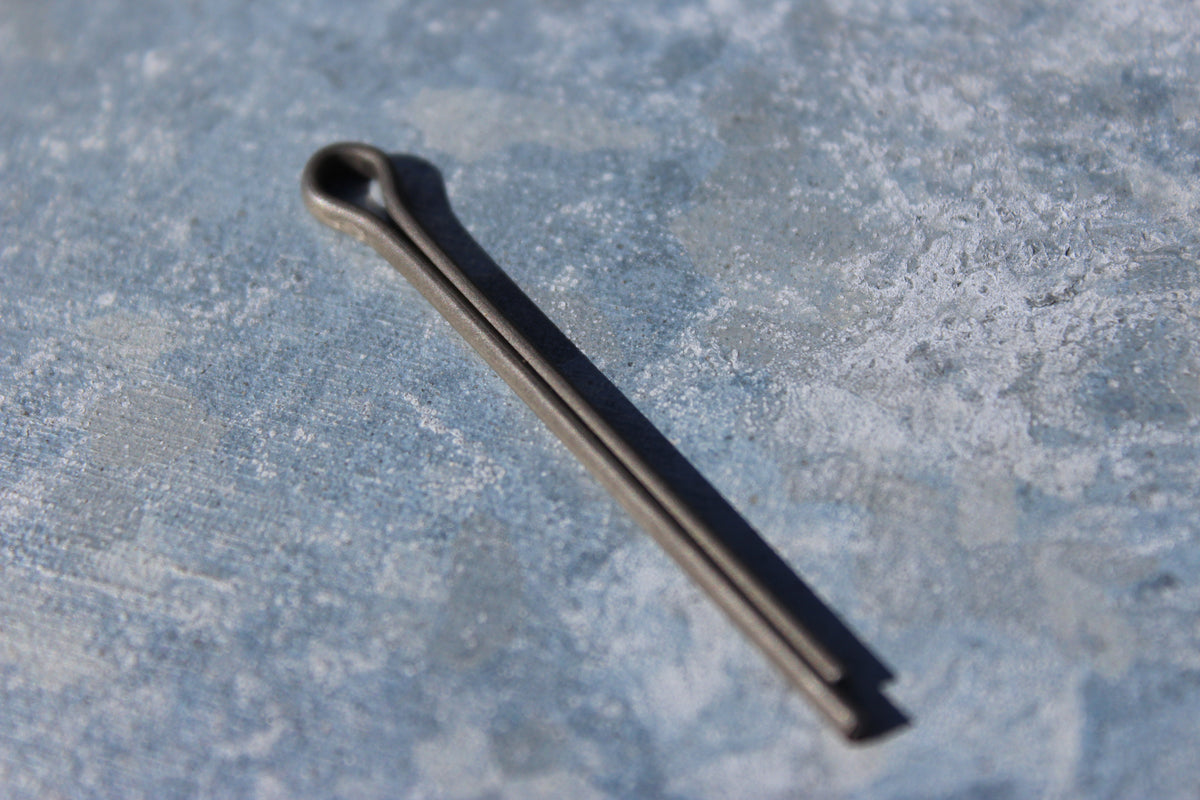

The EZ Loader stainless steel boat trailer cotter key, part number 290-002656, is a replacement axle spindle locking fastener measuring 5/32" in diameter and 1-1/4" in length. Also called a cotter pin or split pin, this small but important component is used in compatible boat trailer wheel hub assemblies to help secure the spindle retaining nut after proper wheel bearing adjustment.

Its stainless steel construction provides corrosion resistance in marine environments where boat trailer components are exposed to water, road spray, and repeated launching and retrieval. Confirm the spindle hole diameter, retaining nut configuration, and required cotter key length before ordering.

What Is the Purpose of a Boat Trailer Cotter Key?

A boat trailer spindle cotter key acts as a mechanical locking device that prevents the spindle retaining nut from backing off during normal towing conditions.

On many conventional wheel hub assemblies, the bearings are installed and adjusted using a spindle nut. After the nut has been correctly positioned according to the axle manufacturer's instructions, the cotter key passes through a cross-drilled hole in the spindle and the corresponding slot in a castellated nut or compatible nut-retaining device.

The two ends of the cotter key are then bent to hold the pin in position. This creates a positive mechanical stop that helps prevent the retaining nut from rotating loose due to road vibration.

Why Is a Cotter Key Important?

• Spindle nut security: Helps prevent the retaining nut from loosening after the wheel bearings have been properly adjusted.
• Wheel hub retention: Helps maintain the retaining nut's position and reduces the risk of excessive hub movement or wheel assembly separation.
• Wheel bearing maintenance: Commonly replaced when inspecting, servicing, repacking, or replacing wheel bearings.
• Mechanical locking protection: Provides a physical retaining method rather than depending solely on nut friction.
• Marine corrosion resistance: Stainless steel construction helps resist corrosion associated with wet boat trailer environments.

Important: The cotter key does not carry the trailer's weight, establish wheel bearing adjustment, or replace proper spindle nut installation. Its purpose is to help retain the spindle nut after the axle manufacturer's specified bearing adjustment procedure has been completed.

Features and Benefits

• EZ Loader replacement cotter key, part number 290-002656.
• Stainless steel construction for corrosion resistance.
• 5/32" nominal diameter.
• 1-1/4" (1.25") nominal length.
• Split-pin design for compatible spindle nut locking arrangements.
• Commonly used with boat trailer axle spindles, wheel hubs, bearings, and retaining nuts.
• Useful replacement hardware during routine hub and bearing maintenance.

Product Details

When Should a Boat Trailer Cotter Key Be Replaced?

A cotter key should generally be replaced whenever it is removed during wheel hub or bearing service. Repeated bending and straightening can weaken the metal, making reuse undesirable.

Replace the cotter key if it is:

• Missing from the axle spindle retaining assembly.
• Excessively bent, cracked, or physically damaged.
• Corroded or showing signs of deterioration.
• Removed during bearing inspection, repacking, or replacement.
• Incorrectly sized for the spindle hole or retaining nut.

Installation and Fitment Considerations

Before installing a replacement cotter key, inspect the spindle, retaining nut, washer, wheel bearings, and related hardware for wear or damage.

• Confirm the specified cotter key diameter is 5/32".
• Verify the required length is 1-1/4".
• Follow the axle manufacturer's wheel bearing adjustment procedure.
• Install the cotter key through the spindle and compatible retaining nut or locking device.
• Secure the pin ends according to the axle manufacturer's instructions.
• Do not substitute an undersized cotter key or assume all trailer spindles use identical retaining hardware.

Safety Notice: Never tow a trailer with missing or improperly installed spindle nut locking hardware. A cotter key is not a substitute for correct wheel bearing adjustment, proper hub installation, or inspection of damaged spindle components.
