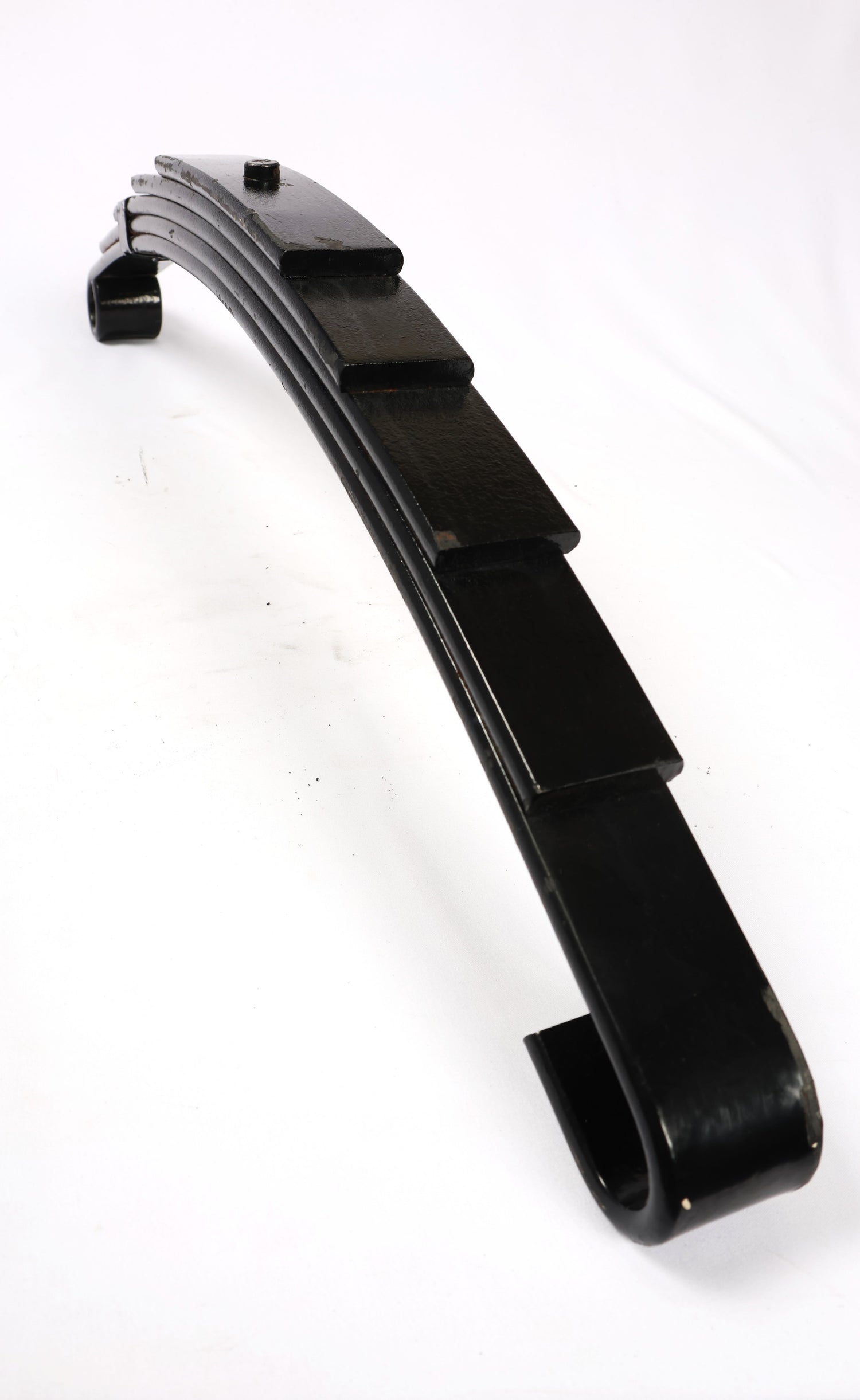

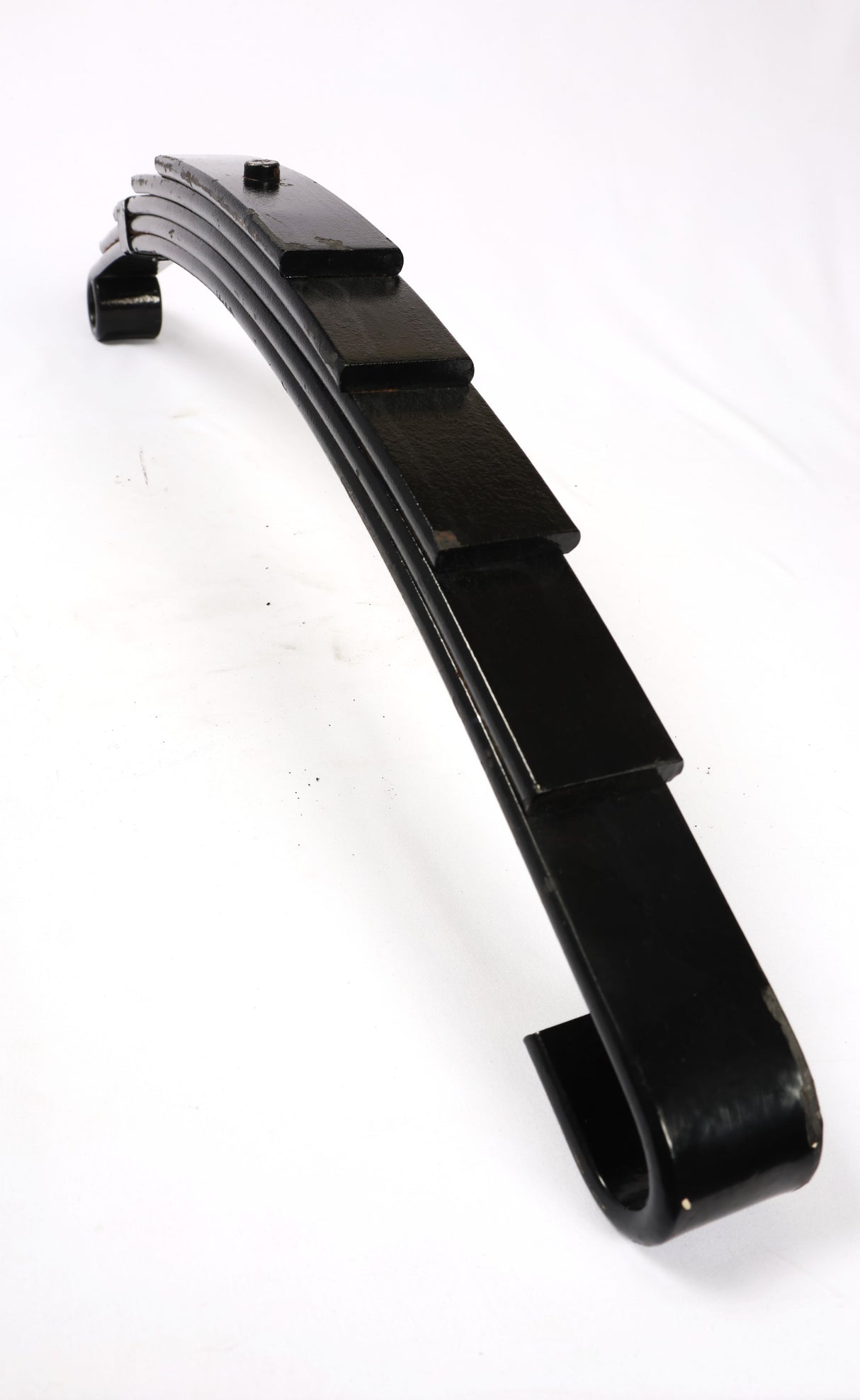

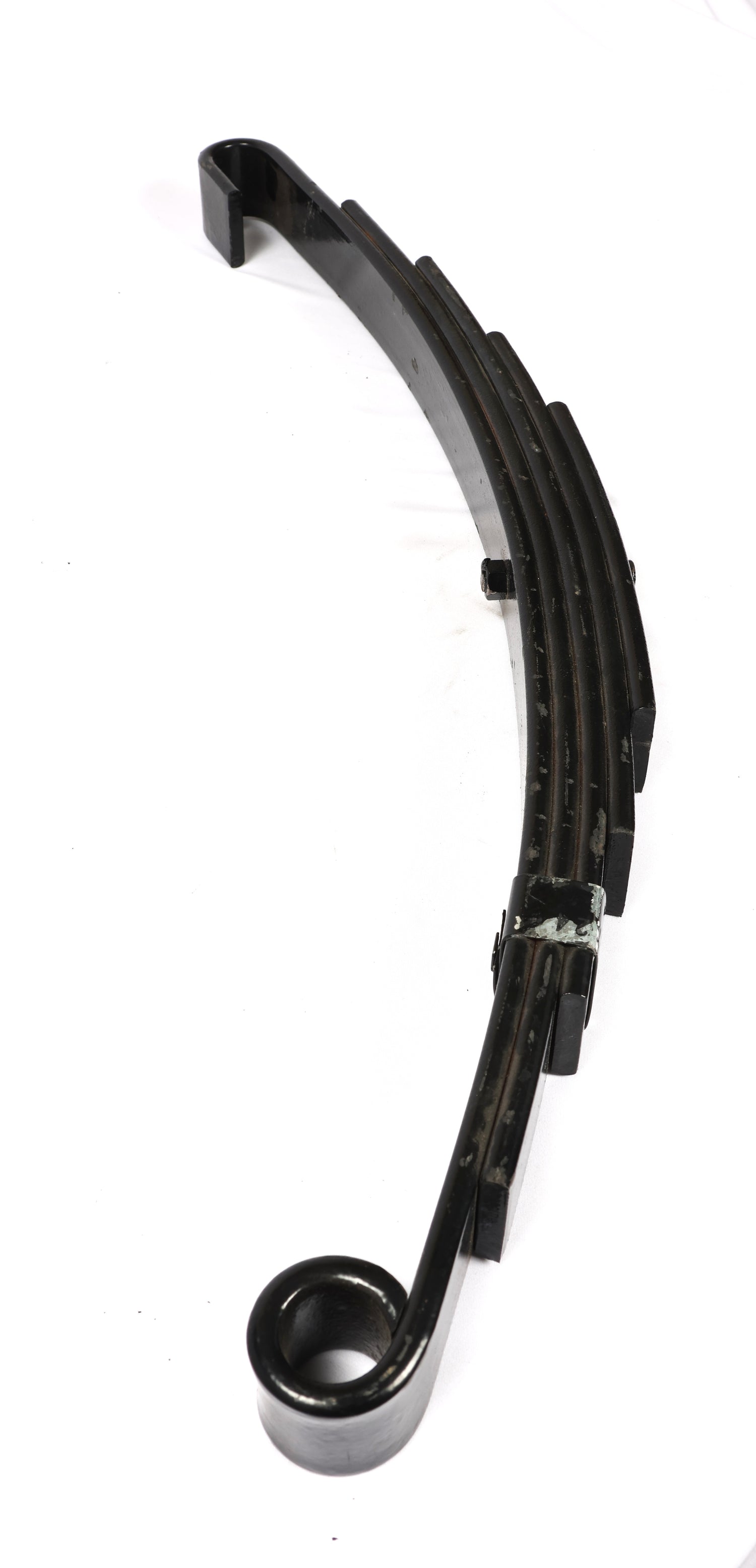

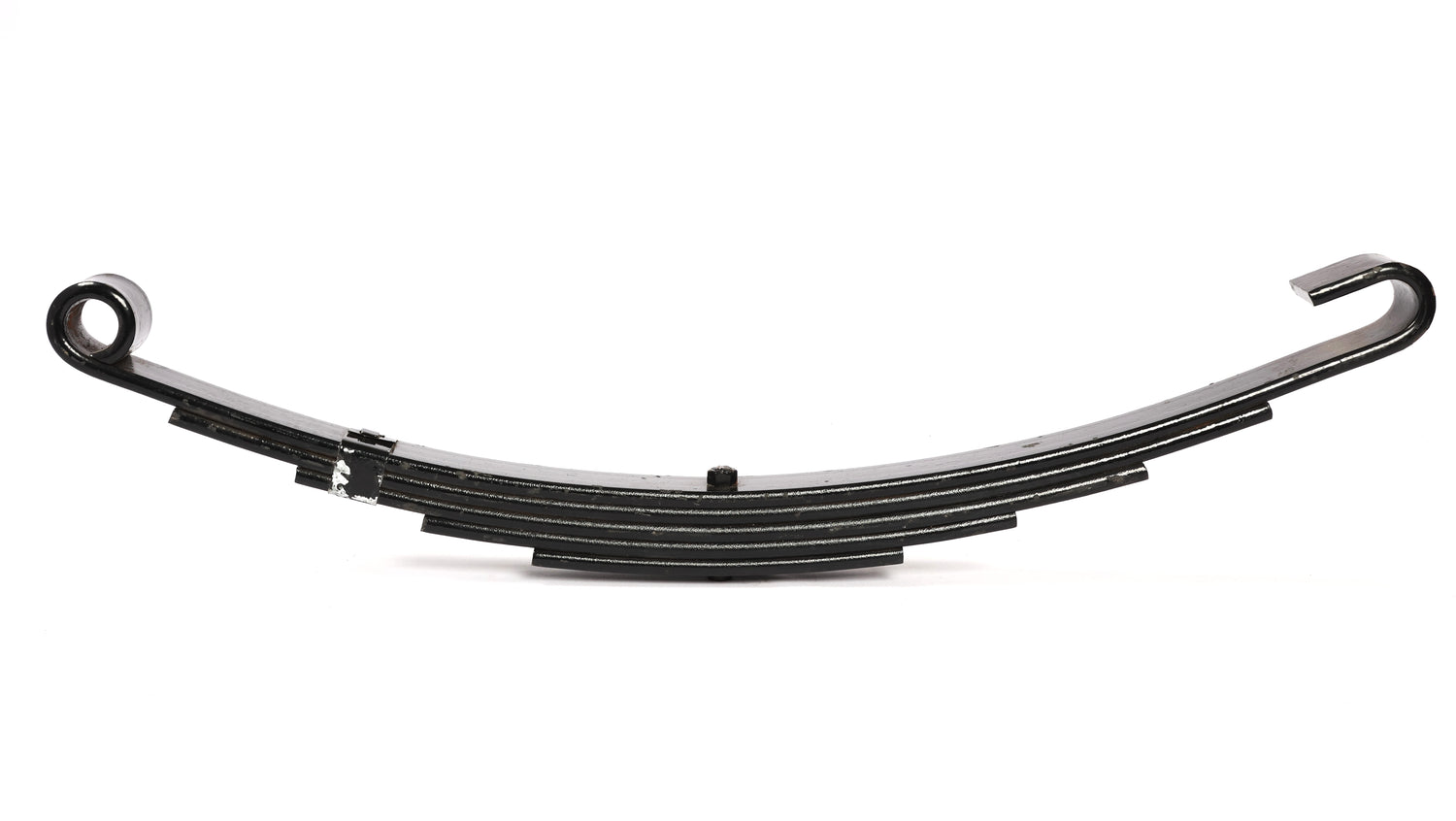

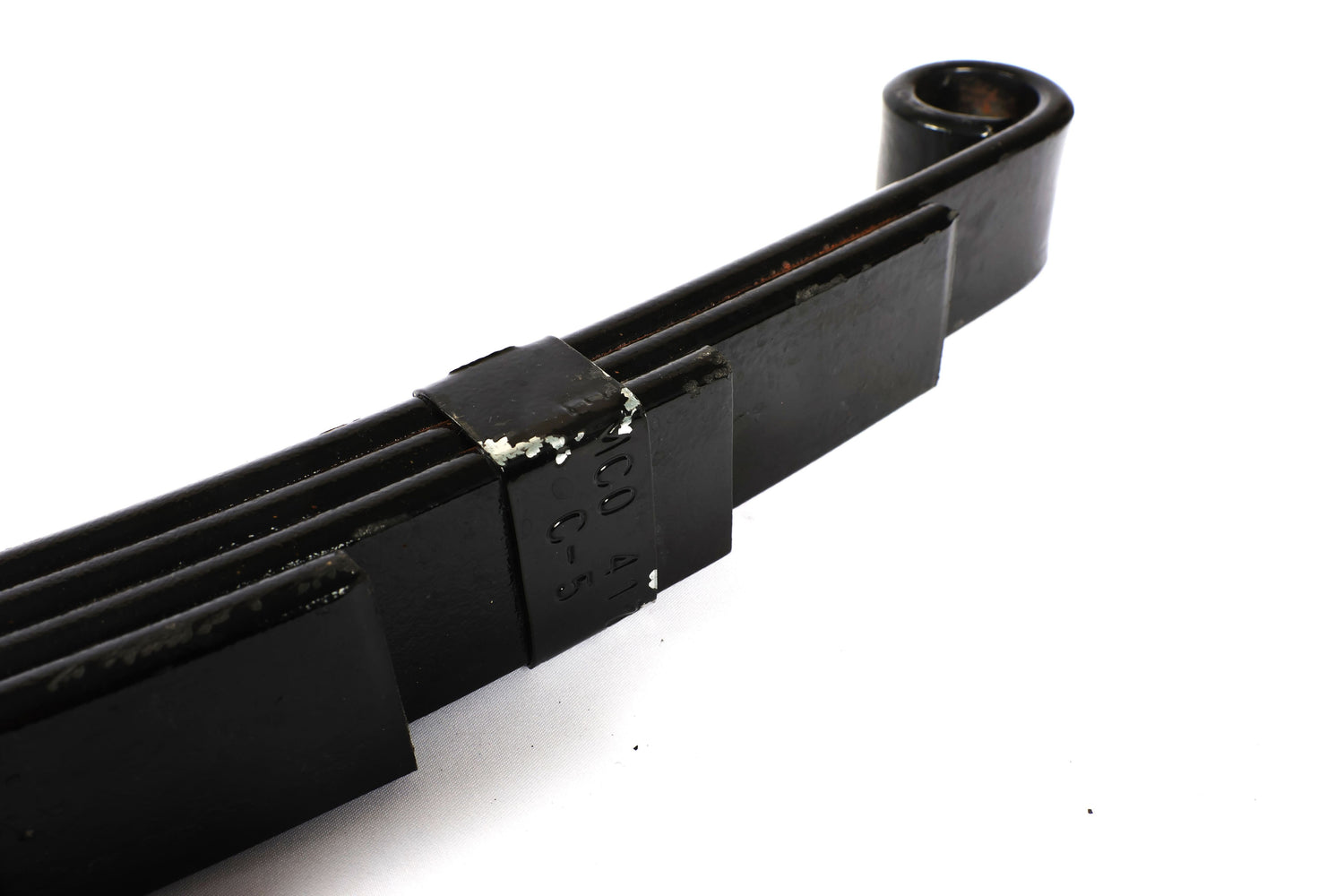

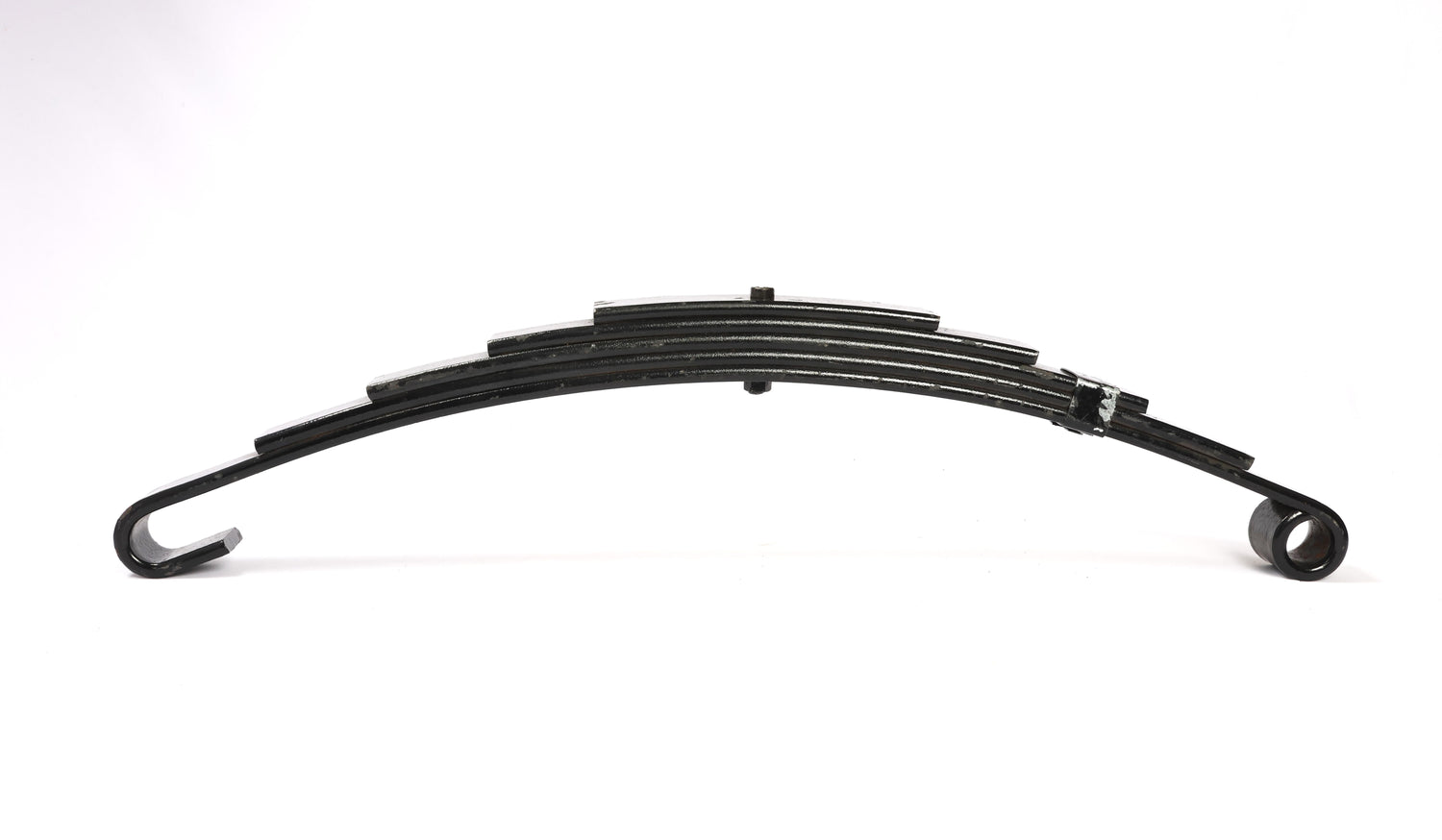

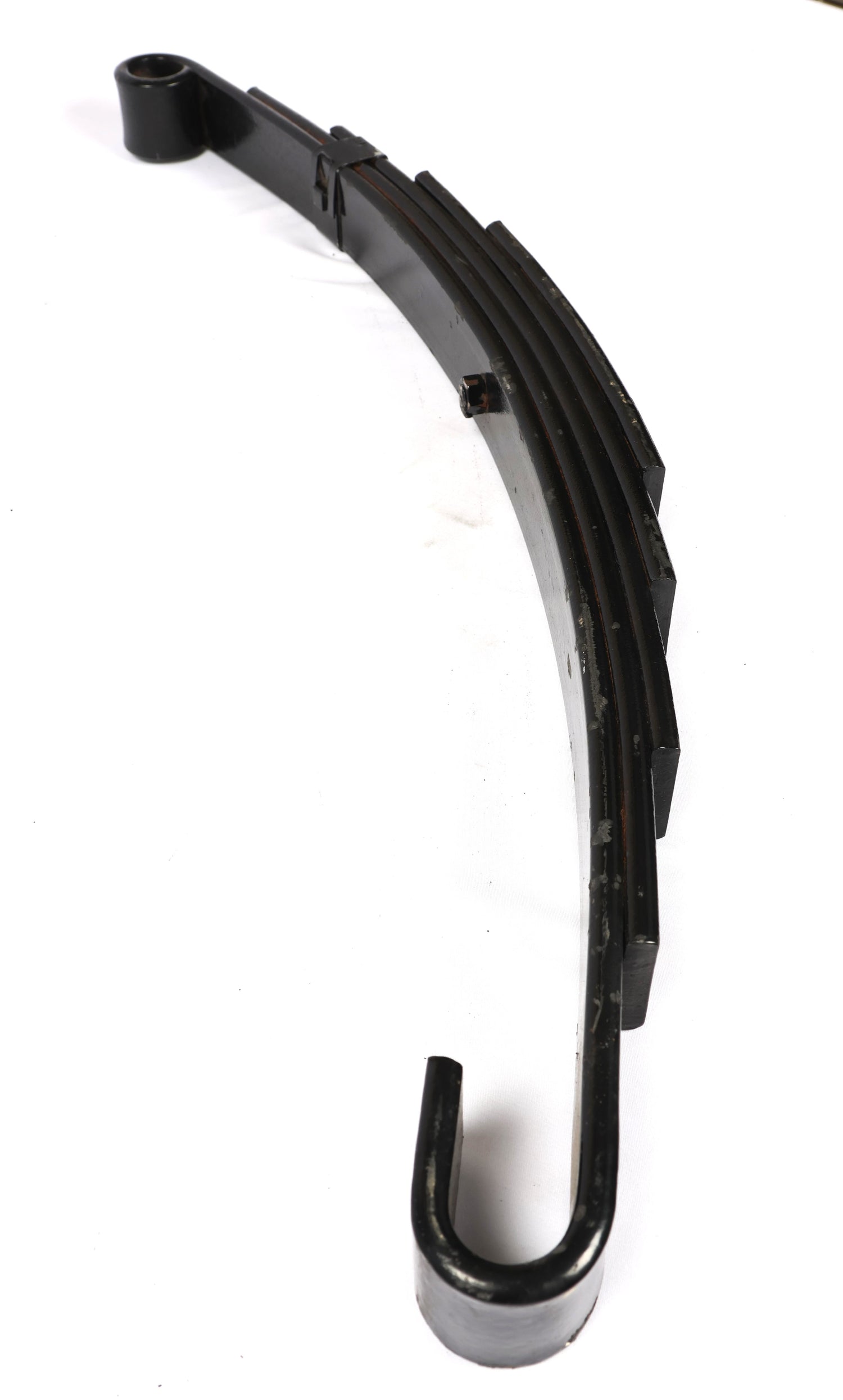

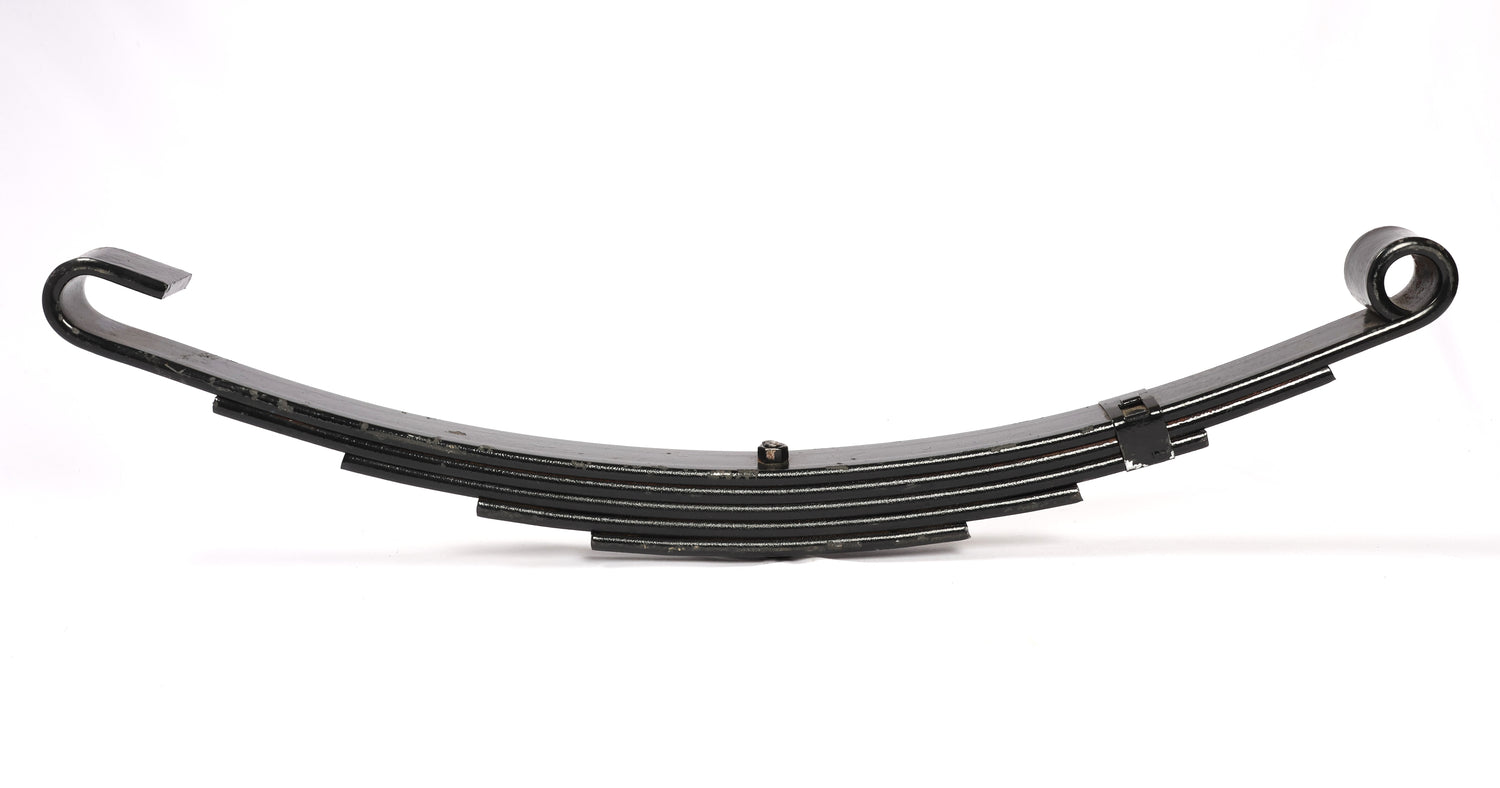

EZ Loader C-Hook (Slipper) 26-1/4" 5-Leaf Spring – 250-031414

Part Name: C-Hook (Slipper) 5-Leaf Leaf Spring
Part Number: 250-031414

OEM EZ Loader C-hook (slipper) style leaf spring designed for maximum load support while maintaining smooth, non-binding suspension travel on compatible boat trailers.

This 26-1/4" 5-leaf spring represents a higher-capacity option within the EZ Loader slipper suspension system, providing additional strength for heavier trailer and boat combinations.

Specifications

• Length: 26-1/4" (Eye to Hook)
• Width: 1-3/4"
• Leaf Thickness: Approx. 5/16"
• Material: Steel
• Finish: Black
• Capacity: 2,450 lbs per spring (4,900 lbs per pair)

Configuration

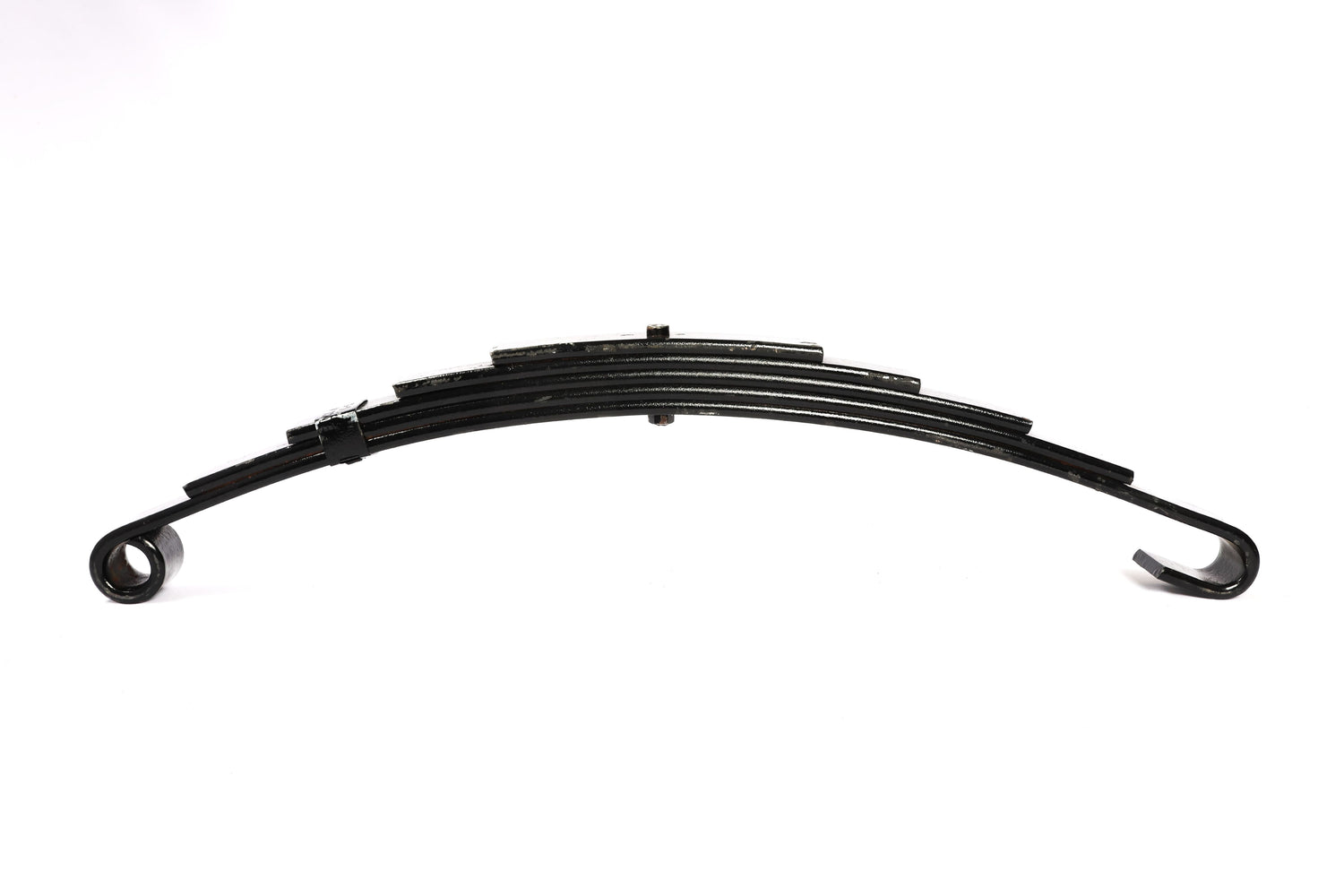

• C-Hook / Slipper Style Spring

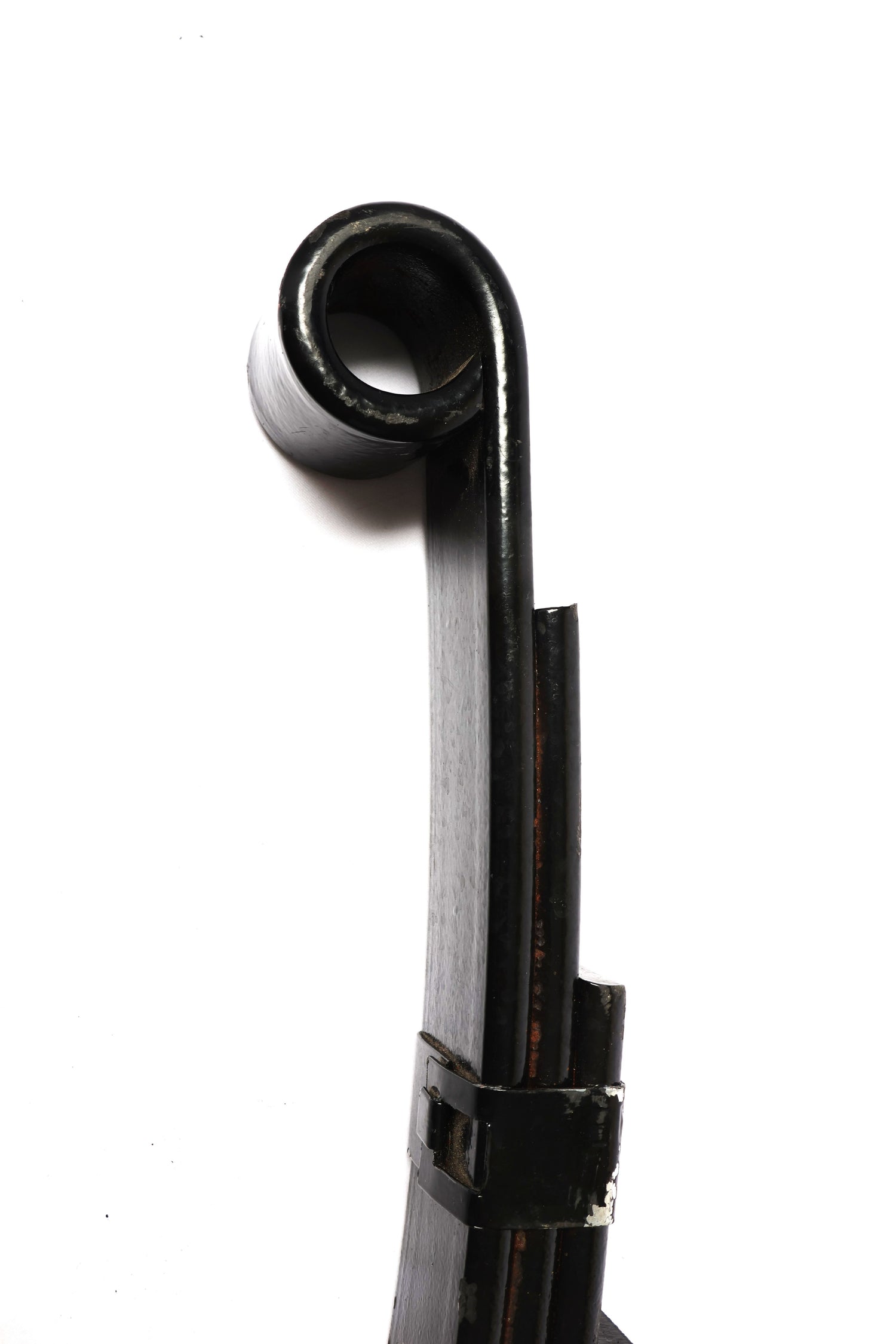

• One fixed eye end

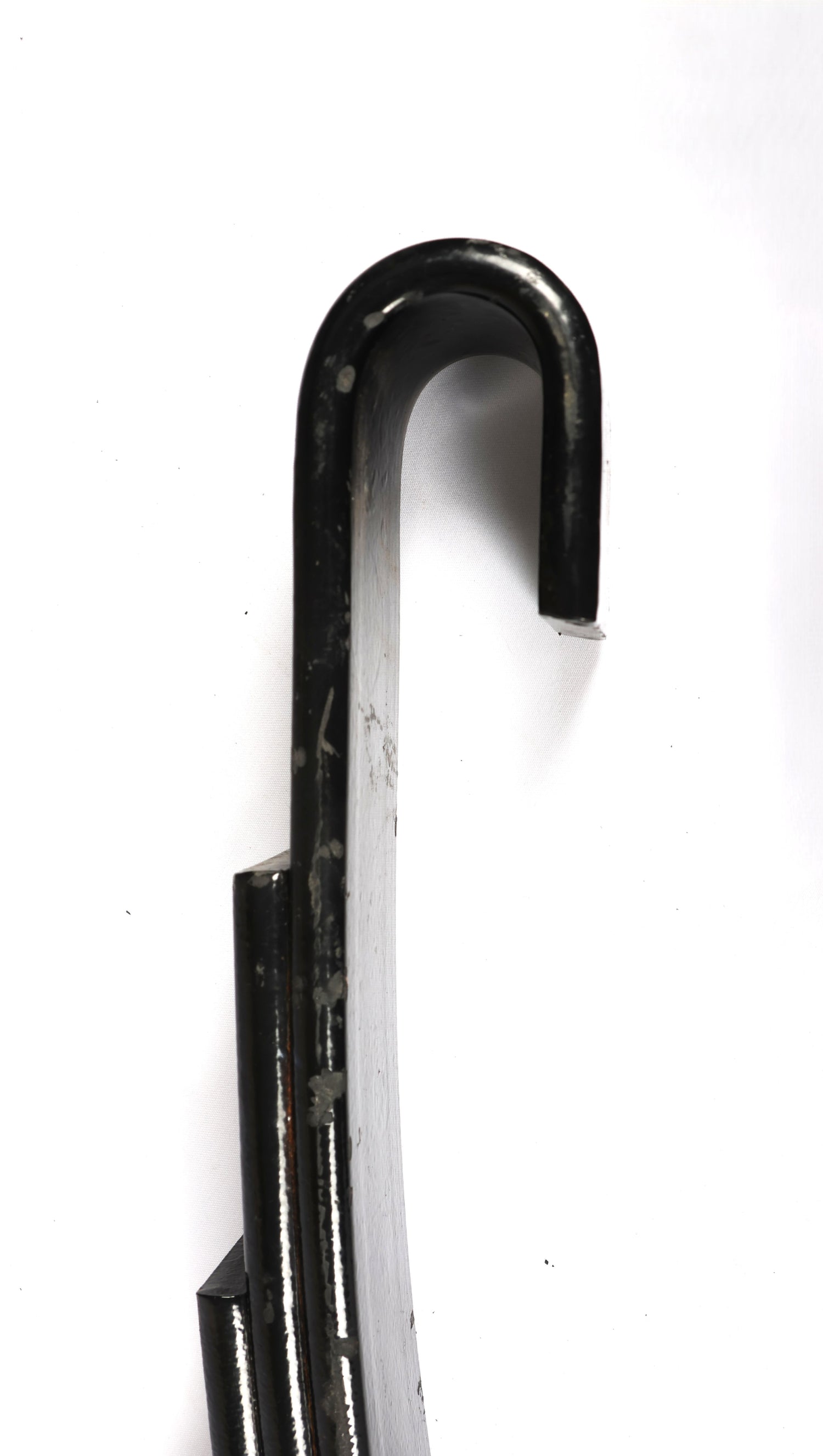

• One slipper (hook) end
• Designed to work with hanger and equalizer systems

Included Components

• (1) Leaf Spring

Springs are sold individually

Key Features

• OEM EZ Loader replacement part
• Highest load capacity within comparable 26-1/4" slipper spring configurations
• Maintains smooth, non-binding suspension movement
• Helps absorb road shock for a smoother ride
• Supports consistent load transfer across axles
• Designed for heavier-duty trailer applications

Common Applications

• EZ Loader single axle trailers (higher load setups)
• EZ Loader tandem axle trailers (with equalizer systems)
• EZ Loader tri-axle trailers requiring maximum support
• Applications where additional strength is needed beyond 3-leaf and 4-leaf configurations

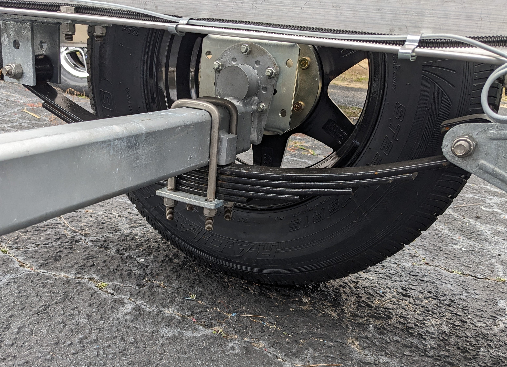

Installation Notes

• Mounts to trailer hanger at eye end
• Slipper end rides on hanger or equalizer
• May mount above or below axle depending on configuration
• Inspect bushings, hangers, and mounting hardware during replacement

Fitment Reminder

Leaf spring fitment must match:

• overall length
• mounting style (slipper vs eye)
• trailer weight and capacity

👉 Not sure? Call us first — we’ll help you match it correctly.

Replacement Guidance

Replacement in pairs is not always required, but should be evaluated based on overall spring condition and trailer stance.

If moving to a higher-capacity spring, confirm compatibility with the rest of the suspension system.

Often Purchased With

• 300-015975 — Spring Mounting Kit
• 300-015973-SS — Bushing Mounting Kit

Real-World Use

At 411-Trailers Group, we work with these spring systems every day on active trailers in our yard.

The 5-leaf configuration is typically used where maximum support is needed while still maintaining the smooth, non-binding characteristics of the EZ Loader slipper suspension system.

Build Quality

Constructed from American steel, these springs are designed for consistent strength, durability, and long service life under real-world towing conditions.
