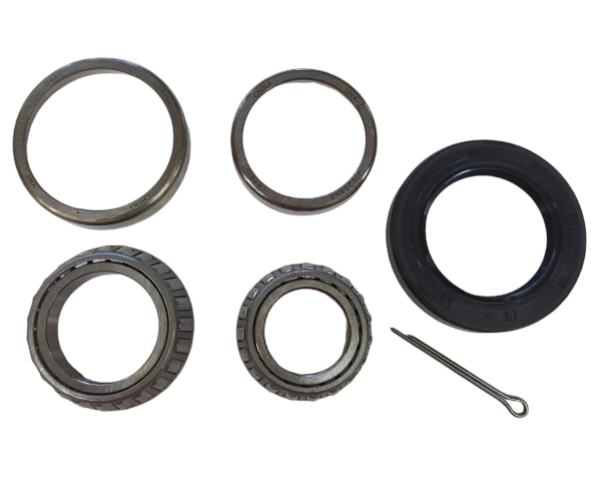

EZ Loader H1000 5-Lug Hub Bearing & Seal Kit – 300-015907

The EZ Loader H1000 wheel hub bearing and seal kit, part number 300-015907, is designed for compatible H1000 5-lug boat trailer hub assemblies with tapered axle spindles. This replacement bearing and seal kit supports routine wheel hub maintenance, bearing service, and replacement of worn bearing and sealing components.

The specified bearing inside diameters are 1-1/16" and 1-3/8", corresponding to the different bearing journal sizes found on the applicable tapered spindle arrangement. Confirm the original bearing numbers, bearing dimensions, hub model, and seal specifications before ordering.

What Does a Boat Trailer Hub Bearing & Seal Kit Do?

A boat trailer wheel hub assembly rotates around a stationary axle spindle. The wheel bearings support this rotation while carrying the forces transmitted through the trailer wheel and hub. Properly installed, lubricated, and adjusted bearings help the trailer wheels turn smoothly and reliably.

The hub seal helps retain bearing lubricant inside the hub and limit the entry of water, dirt, and other contaminants. This is particularly important on boat trailers, where repeated launching, retrieval, road spray, and wet operating conditions can expose hub components to moisture.

Replacing worn bearings and a damaged seal during scheduled hub service helps maintain proper wheel rotation and reduces the risk of bearing overheating, hub damage, and unexpected trailer breakdowns.

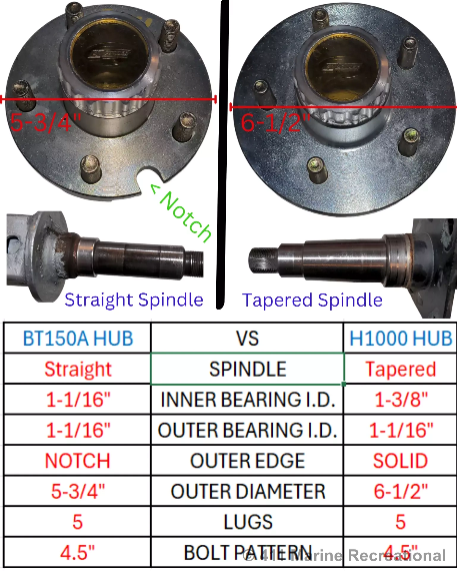

Why Are There Two Different Bearing Sizes?

The compatible H1000 tapered spindle arrangement uses bearing positions with different nominal inside diameters:

• 1-1/16" bearing ID: Smaller-diameter bearing position, typically toward the outer end of the tapered spindle.
• 1-3/8" bearing ID: Larger-diameter bearing position, typically toward the inner shoulder of the tapered spindle.

These different bearing sizes correspond to the spindle's bearing journals. The bearings must match the spindle dimensions and the hub's bearing races. A 5-lug wheel bolt pattern alone does not establish bearing or seal compatibility.

Why Replace Wheel Bearings and Seals?

• Restore smooth wheel rotation: Replace bearings showing roughness, wear, pitting, or other damage.
• Help protect the hub assembly: Properly functioning bearings support the rotating wheel hub.
• Reduce contamination: A correctly fitted hub seal helps retain grease and limit the entry of water and debris.
• Support preventative maintenance: Bearing inspection and replacement are important for trailers exposed to repeated boat launching and road travel.
• Address hub service needs: Suitable for compatible H1000 hub maintenance when the existing bearing and seal specifications match.

Signs Your Boat Trailer Hub May Need Bearing Service

Inspect the wheel hub and bearings if you notice any of the following:

• Grinding, rumbling, or unusual wheel bearing noise.
• Roughness when rotating the wheel or hub by hand.
• Excessive hub movement or abnormal wheel play.
• Discolored, contaminated, or water-damaged bearing grease.
• Visible grease leakage around the rear hub seal.
• Unusual hub heating after towing, once brake-related heat has been ruled out.
• Pitting, corrosion, scoring, or damage found during hub disassembly.

Safety Note: Stop towing and inspect the assembly if you suspect a failed bearing, loose hub, or damaged spindle. A bearing kit alone cannot correct a worn spindle, damaged hub, or improperly fitted bearing race.

Product Details

Important Fitment Information

Do not select a wheel bearing kit based on the number of wheel lugs alone. Different 5-lug trailer hubs can use different bearings, seals, races, and spindle configurations.

Before ordering EZ Loader part 300-015907, verify:

• The existing hub is the applicable H1000 configuration.
• The axle uses the compatible tapered spindle design.
• The original bearing inside diameters are 1-1/16" and 1-3/8".
• The bearing identification numbers and matching races are compatible.
• The grease seal dimensions and spindle seal surface match the replacement components.

When the original bearing numbers are unreadable, accurate measurements of the spindle bearing journals, existing bearing races, and seal surfaces may help identify the correct components.

Installation and Maintenance Recommendations

Wheel bearing installation requires proper cleaning, inspection, lubrication, and adjustment. Follow the axle and bearing manufacturer's procedures for installing the bearings, races, seal, retaining hardware, and hub assembly.

• Inspect the spindle for scoring, corrosion, wear, or heat damage.
• Inspect the hub's bearing race seats and replace damaged components as necessary.
• Use a suitable wheel bearing grease approved for the hub and operating conditions.
• Properly pack serviceable tapered roller bearings before installation.
• Install the correct grease seal without damaging its sealing lip.
• Adjust the spindle retaining nut according to the axle manufacturer's procedure.
• Secure the spindle nut using the specified retaining hardware.
• Verify smooth hub rotation and correct endplay before returning the trailer to service.

Important: The exact contents of this kit, including bearing races, grease seal dimensions, and any additional hardware, should be confirmed against the supplied product packaging or factory parts information before purchase. Do not assume the kit includes a complete hub, spindle nut, cotter key, dust cap, or grease unless those items are specifically listed.
